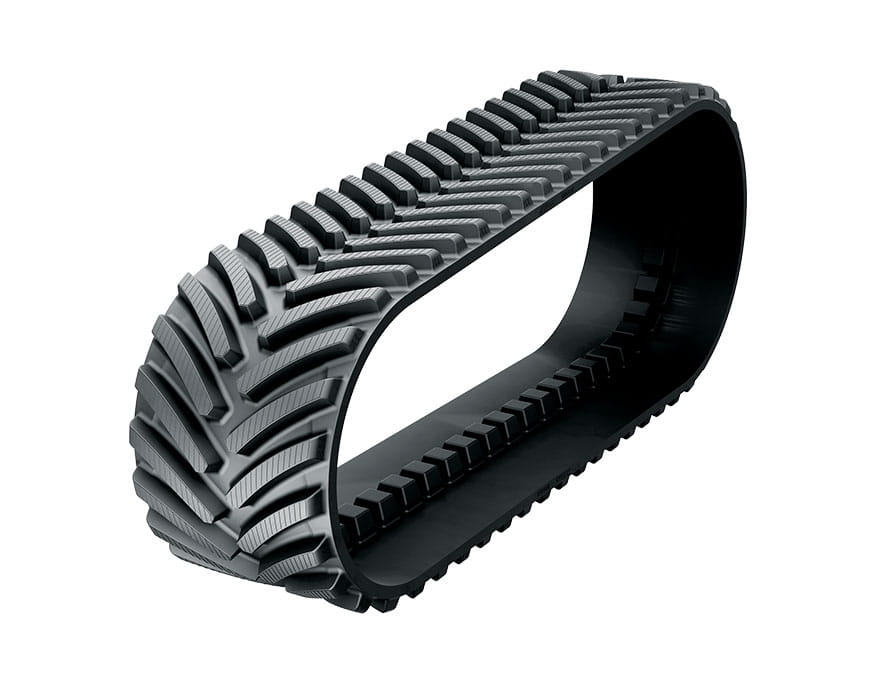

Key benefits:
  • High-resistance tread compound: specially formulated rubber tread resists wear and cuts, ensuring long-lasting performance even in demanding conditions
  • Reinforced track body: three auxiliary wire layers placed at different angles above the steel cables improve track stability and ensure consistent performance
  • High-strength steel cables: brass-coated galvanized steel cables provide uniform strength along the track, supporting heavy loads and extending service life
  • Protective wire layer: an extra wire layer protects steel cables from drive-wheel abrasion, preserving track integrity and reliability over time
agricultural-tires-tracked-machines
Download Additional Product Information

Mitas Agricultural Tires Catalogue

Open Download
Unit
MITRAK - Friction Drive SD
Machine Size Tread Carcass Guide Lug Driving type Weight (Kg)
Brand Model Qty Height (in) Tip width (in) Pitch (in) Main cable size (mm) Thickness (mm) Quantity Length (mm)
Challenger 35/45/55 18x53x6 106 2.56 1.89 6 5.4 37 53 112 Friction 383
25x53x6 522
30x53x6 624
Challenger 65/75/85/95 25x57x6 114 2.56 1.89 6 5.4 37 57 112 Friction 556
25x57x6 663
AGCO MT700
(A to E Series)		 18x58x6 116 2.56 1.89 6 5.4 37 58 112 Friction 419
25x58x6 571
30x58x6 682
AGCO MT800
(A to E Series)		 25x65x6 132 2.56 1.89 6 5.4 37 66 112 Friction 649
30x65x6 776
36x65x6 918
John Deere 8000 T 18x54x6 108 2.56 1.89 6 5.4 37 54 112 Friction 398
25x54x6 539
30x54x6 644
John Deere 8RT 18x59x6 118 2.56 1.89 6 5.4 37 59 112 Friction 426
25x59x6 581
30x59x6 694
John Deere 9000 T 30x63x6 126 2.56 1.89 6 5.4 37 63 112 Friction 773
36x63x6 912
John Deere 9 RT 30x65x6 130 2.56 1.89 6 5.4 37 65 112 Friction 797
36x65x6 941
AGCO AGCO MT700 (MT 738/740/743)
FENDT VARIO MT900		 18x60x6 120 2.56 1.89 6 5.4 37 60 120 Friction 433
25x60x6 591
30x60x6 706
CLAAS Terra Trac 25x44x6 88 2.56 1.89 6 5.4 37 44 88 Friction 415
29x44x6 6.4 508
30x44x6 500
35x44x6 576
36x44x6 629
MITRAK - Friction Drive HD
Machine Size Tread Carcass Guide Lug Driving type Weight (Kg)
Brand Model Qty Height (in) Tip width (in) Pitch (in) Main cable size (mm) Thickness (mm) Quantity Length (mm)
Challenger 35/45/55 25x82x7.78 88 2.76 2 7.8 5.4 41 41 66 Friction 548
30x82x7.78 655
Challenger 65/75/85/95 25x88x7.78 88 2.76 2 7.8 5.4 41 44 66 Friction 584
30x88x7.78 696
36x88x7.78 833
AGCO MT700
(A to E Series)		 25x90x7.78 90 2.76 2 7.8 5.4 41 45 66 Friction 600
30x90x7.78 717
AGCO MT800
(A to E Series)		 30x102x7.78 102 2.76 2 7.8 5.4 41 51 66 Friction 822
36x102x7.78 964
John Deere 8000 T 25x84x7.78 84 2.76 2 7.8 5.4 41 42 66 Friction 566
30x84x7.78 676
John Deere 8RT 25x92x7.78 92 2.76 2 7.8 5.4 41 46 66 Friction 610
30x92x7.78 729
John Deere 9000 T 30x96x7.78 96 2.76 2 7.8 5.4 41 49 66 Friction 811
36x96x7.78 958
John Deere 9 RT 30x100x7.78 100 2.76 2 7.8 5.4 41 50 66 Friction 837
36x100x7.78 988
